51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH

    Buy cheap 51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH from wholesalers

    Buy cheap 51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH from wholesalers
    • Buy cheap 51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH from wholesalers
    • Buy cheap 51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH from wholesalers
    • Buy cheap 51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH from wholesalers

    51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH

    Ask Lasest Price
    Brand Name : KVOU
    Model Number : HV5.0
    Certification : UL1973/IEC62619/UN38.3
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T
    Supply Ability : 5000 unit per month
    Delivery Time : 7-15working days
    • Product Details
    • Company Profile

    51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH

    Large Capacity 51.2V 10.24KWH 5KW 200ah Lithium Solar Storage Battery

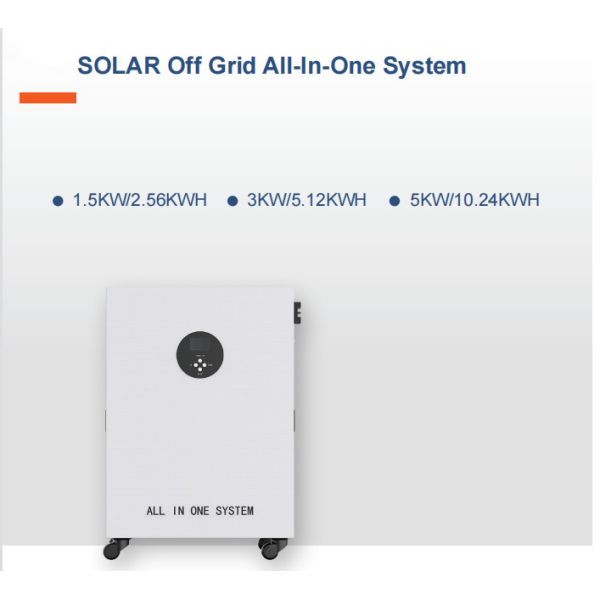

    This product is a fully - integrated home storage system with Lifepo4 batteries, applied for easily retrofitted to an existing solar PV installation. The system stores energy generated during the day and discharge at night when household electricity demand peaks. We expect the battery pack about 20 years life and more than 6000 cycles.


    Enjoy easy installation and cost with portable storage battery, We are always ready to supply the first-class products and meet the various needs of the customers.


    Selective lifepo4 cells:
    IEC A grade Lifepo4 cells applied
    Using lithium iron phosphate cell, low internal resistance, high rate, high safety, long life. High consistency of internal resistance, voltage and capacity of single cell.

    Smart BMS System:
    Smart BMS with function of single battery voltage detection, battery temperature NTC detection etc. Perfect BMS protection function and control system, over current, over voltage, insulation and other multiple protection design
    Supports communication protocol such as CAN2.0 and RS485, which can be used in various scenarios.


    51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH


    Model
    PNG 1000-2.56
    PNG 1000-2.56
    PNG3000-10.24
    Rated AC Output Power
    1.5KW
    3KW
    5KW
    Peak Power (20ms)
    4.5KW
    9KW
    15KW
    AC Output Voltage
    100-120V/220-240V
    Output Frequency
    50/60Hz
    Output Waveform
    50/60Hz
    USB Output
    5V 2A
    Max AC Charge Current
    40A
    Max PV Input Power
    1040W
    2080W
    3120W
    Max PV Input Voltage
    150V
    MPPT Charging Current
    24V 40A
    48V 40A
    48V 60A
    Battery Type
    LiFePo4
    Battery Capacity
    2.56KWh
    5.12KWh
    10.24KWh
    Nominla Voltage
    25.6V
    51.2V
    51.2V
    Operating Voltage
    22.4 – 29.2V
    44.8 – 58.5V
    44.8 – 58.5V
    Cycles Life
    >6,000
    Communication
    RS485
    Cooling Method
    Auto Fan Cooling
    Protection
    Short Circuit,Over Charge/Discharge, Over Current/Temp
    Working Temperature
    -20 – 55℃
    Enclosure Protection Rating
    IP40
    Dimension (W*H*D, mm)
    592*820*260
    592*820*260
    642*1129*280
    Weight
    60KG
    90KG
    140KG
    Warranty
    3Years
    Safety Standard
    CE ,TUV,IEC, RoHs

    51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH


    FAQ
    1. Q: Are you a manufacturer or trading company
    A: We are manufacturer.


    2. Q: Can I buy one or two units for the sample first?
    A: Yes. Samples are welcome for the portable power station/solar generator. You can buy the sample directly online here.


    3. Q: How to charge the portable power station/solar generator?
    A: There are three ways to charge the portable power station. By grid, by solar panel and by car.


    4. Q: Do this portable power station/solar generator include the solar panel?
    A: No. The portable power station doesn't include the solar panel and controller. The solar panel and controller is sold
    separately, which you can buy from us also.


    5. Q: What is the production time for this portable power station/solar generator?
    A: The delivery time for the samples is usually 14 days. It can be shipped by UPS, except some sensitive countries.
